Description
The AgriEid Heavy Duty Load Bar digital livestock weigh system now comes with an advanced average weight algorithm used by commercial sale yard scales for incredible accuracy with rapid display of the animal weight on the included High Definition LCD monitor.
The system also comes with powerful software to record and auto calculate each animals average daily weight gain (ADG) as they are weighed with the system. Enables the identification of poor performing animals in the yards so medical boost treatments can be applied on the spot to increase total annual weight production.

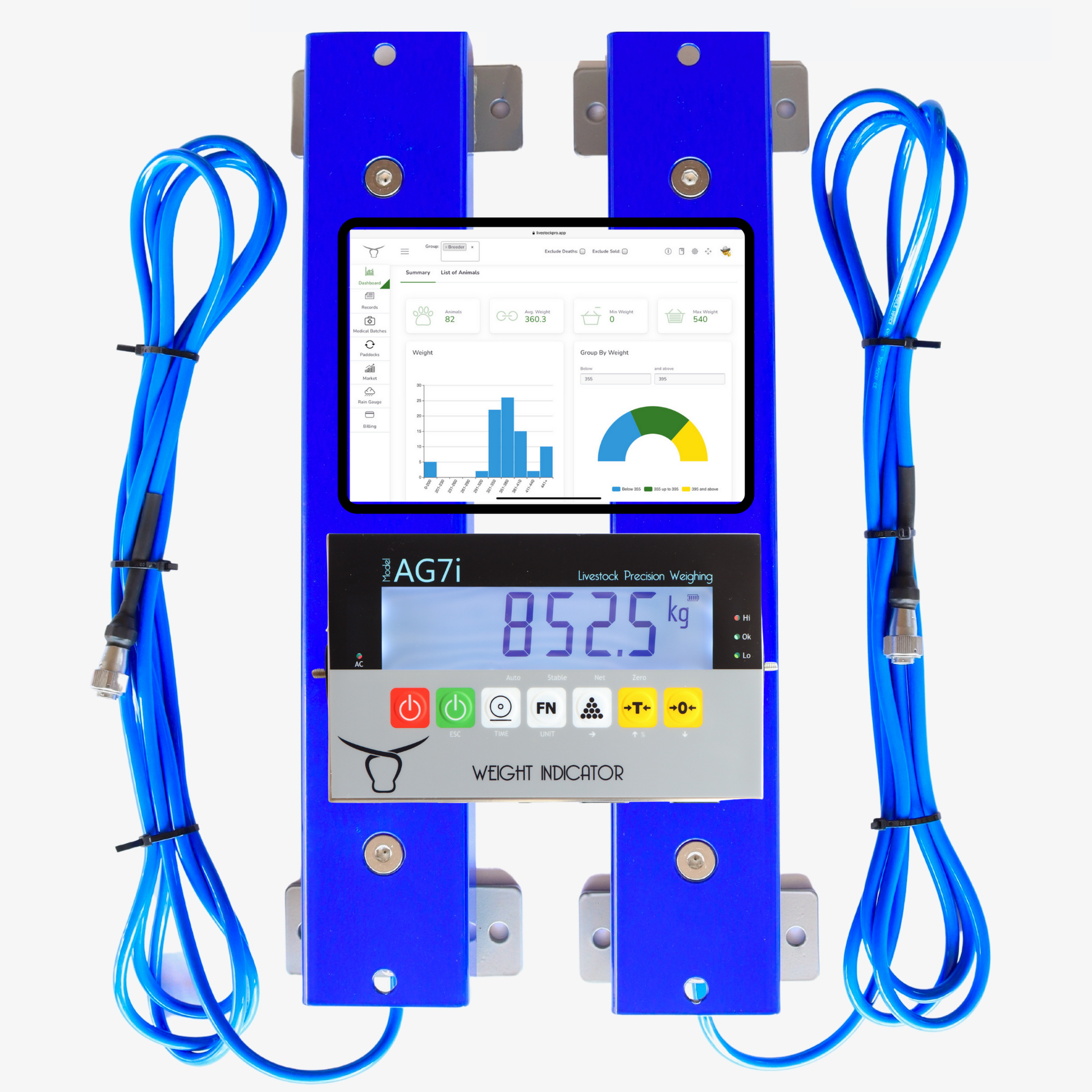

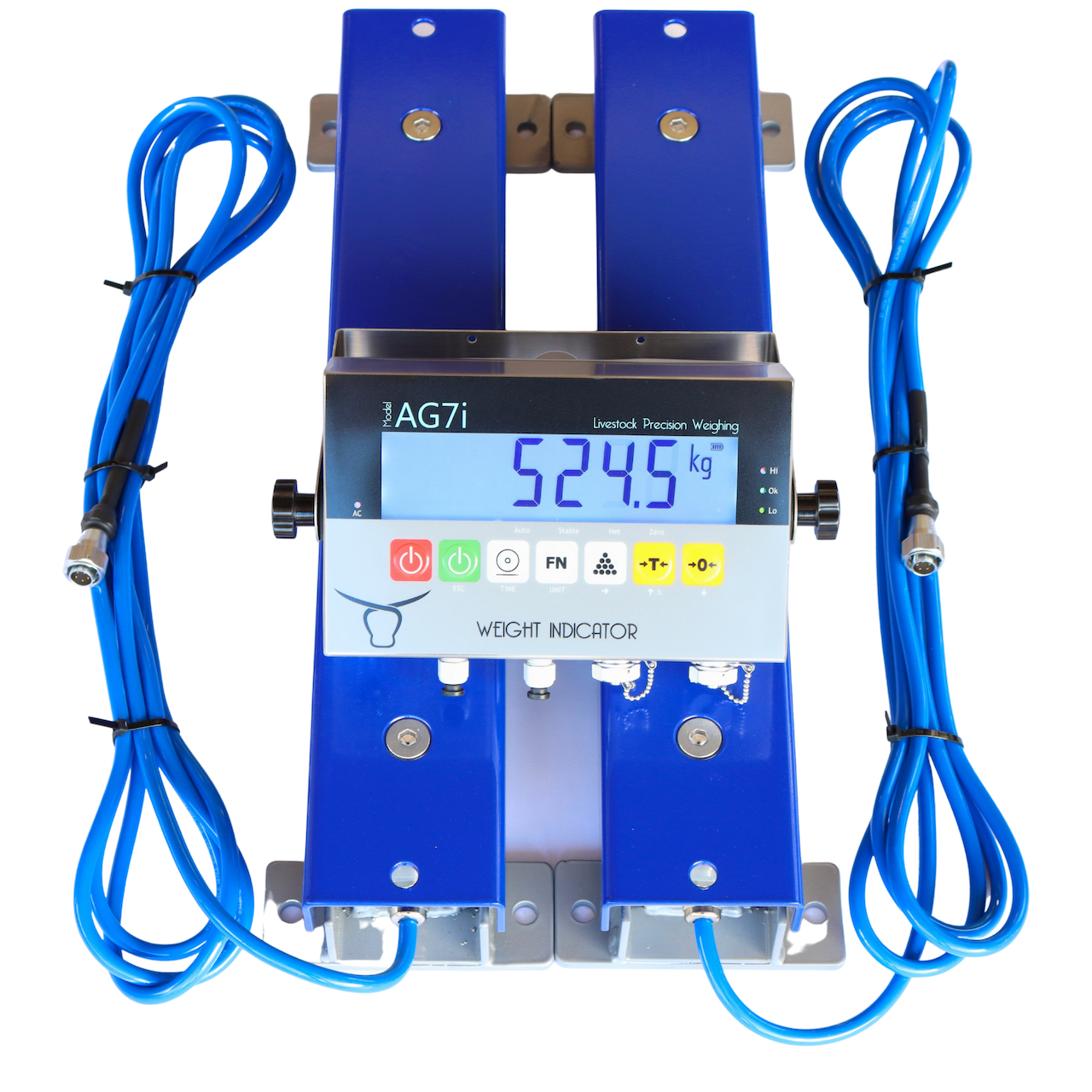

This load bar package includes a stainless steel encased digital indicator (monitor) with a 6 volt deep cycle rechargeable battery, heavy duty (5m length) dual rodent proof cables to the rugged designed load bars with quick release stainless steel connectors.
Easy to set up - requires a firm level surface and platform.

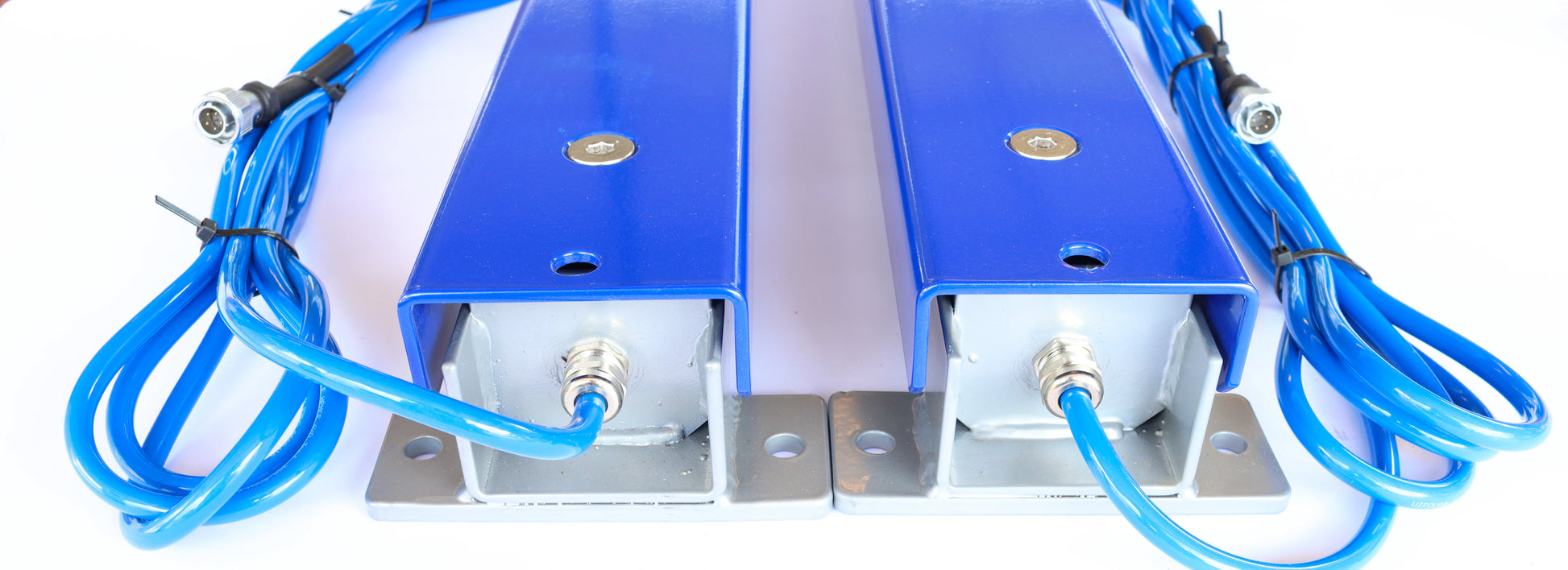

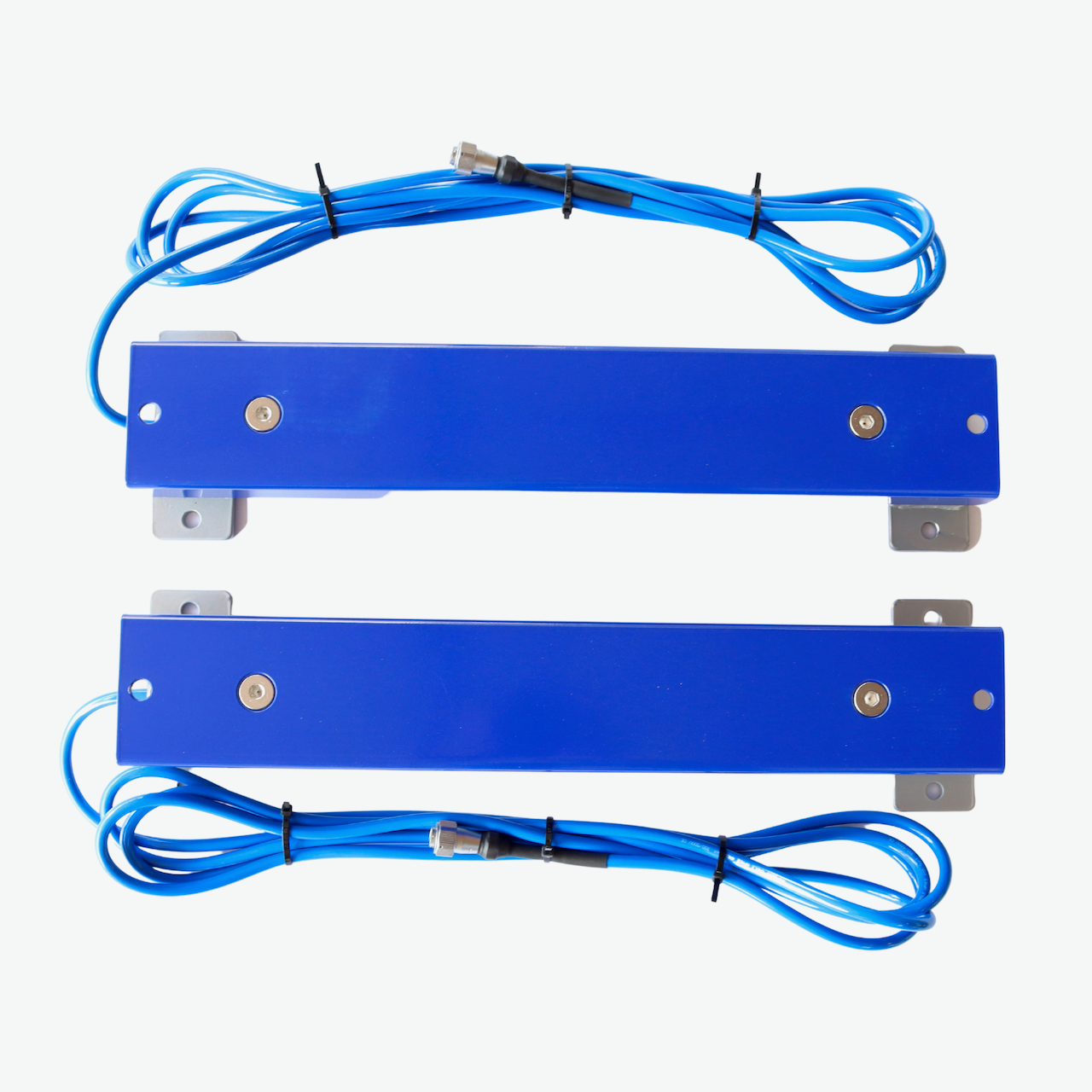

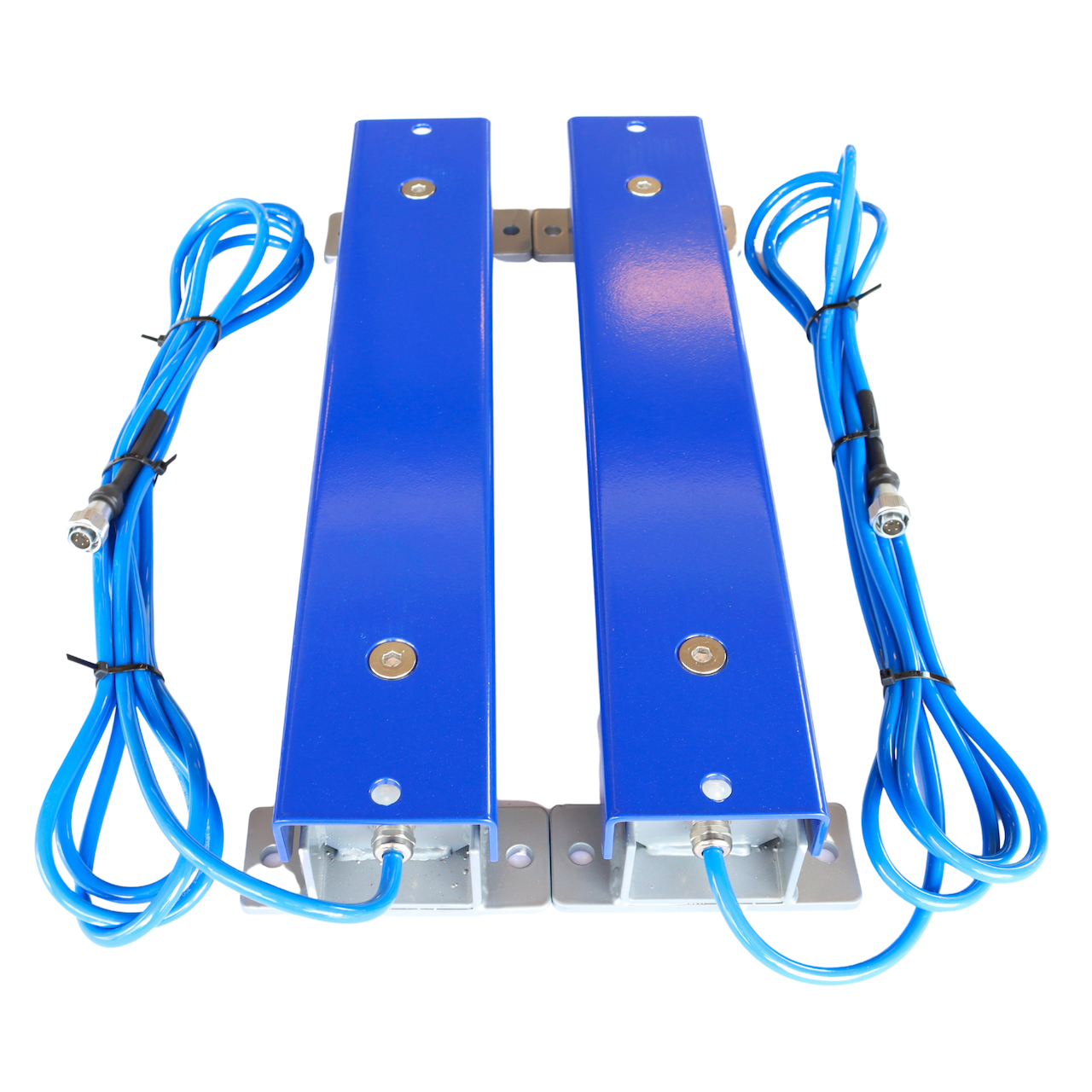

- Heavy Duty double decker design alloy steel load bars
- Bottom feet mounting holes to dyna bolt to concrete pad
- Slotted top mounting holes to attach the platform
- 5m long PVC cables with tough stainless steel connectors
- Fully water proof IP67 load cell and monitor design
- Easy to install and set up with one person (only 11.5kg each bar)
- Can weigh any size or type of animal up to weight capacity (3000kg)
Combine with our Livestock Management Software to measure average daily weight gain (ADG) with individual medical records and notes.
Click here to view video demo's of all 12 modules in the AgriEID platform.

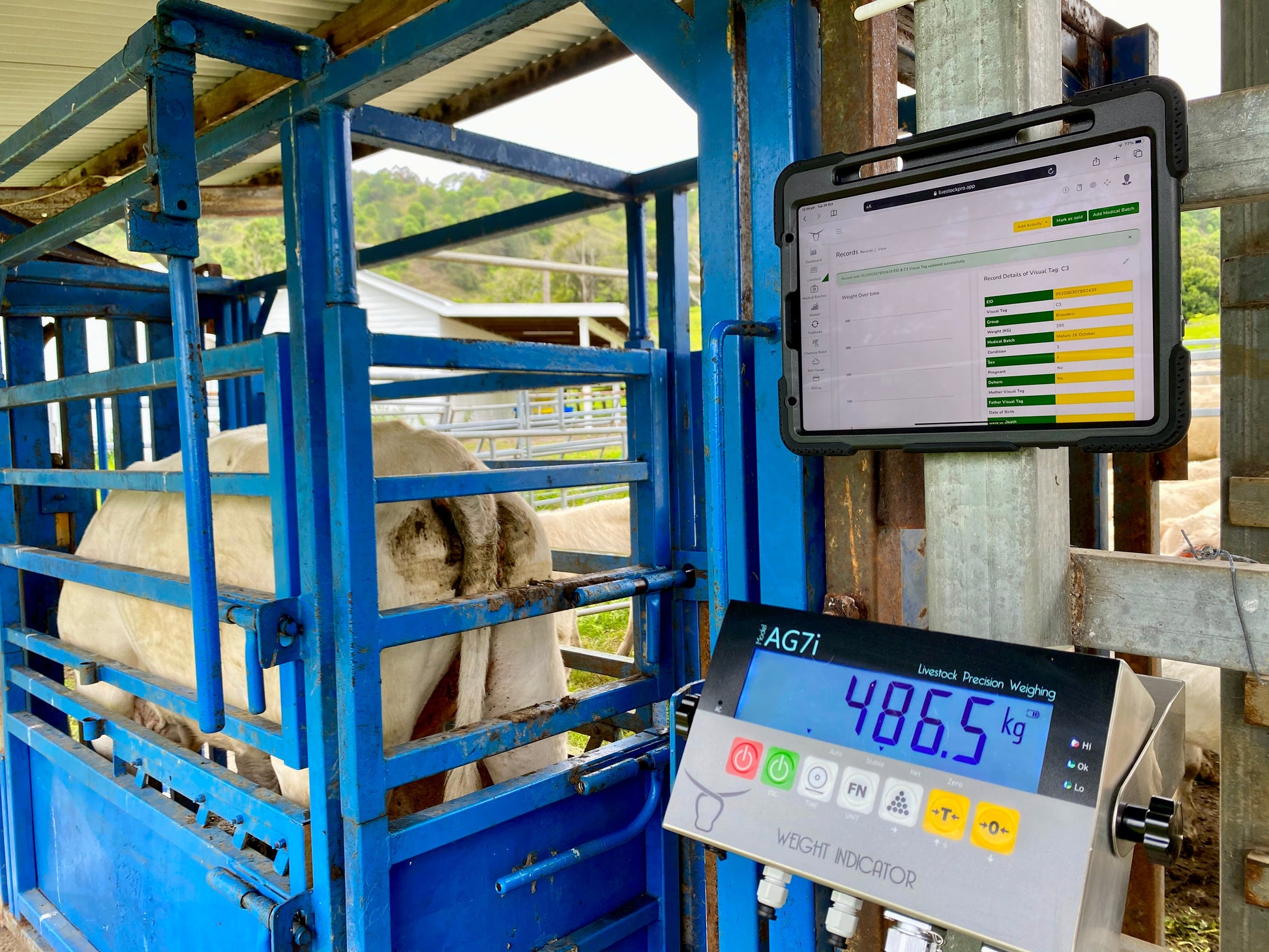

With the AgriEid software it is simple and easy to record each animals average daily weight gain (ADG) over time. As such you can identify poor performing animals as they are weighed in the crush and then administer medical booster treatments to improve their performance (oral drench, pour-on, multivitamins etc). Poor young cattle performance is less than 250 grams weight gain per day - good performance is 500g to 1.5kg per day. As you only need to treat the poor performers - you save big money on expensive products. By using our scales and software your herd weight prior to sale is maximised and improvements can be up to 30 percent per annum in total gross weight gains.
Video demo of ADG (Average Daily Gain) auto calculation in action :
Animal average daily weight gains (ADG) can be easily tracked using the NLIS tag with an AgriEid NLIS Digital Smart Reader or simply use the animals visual tags.

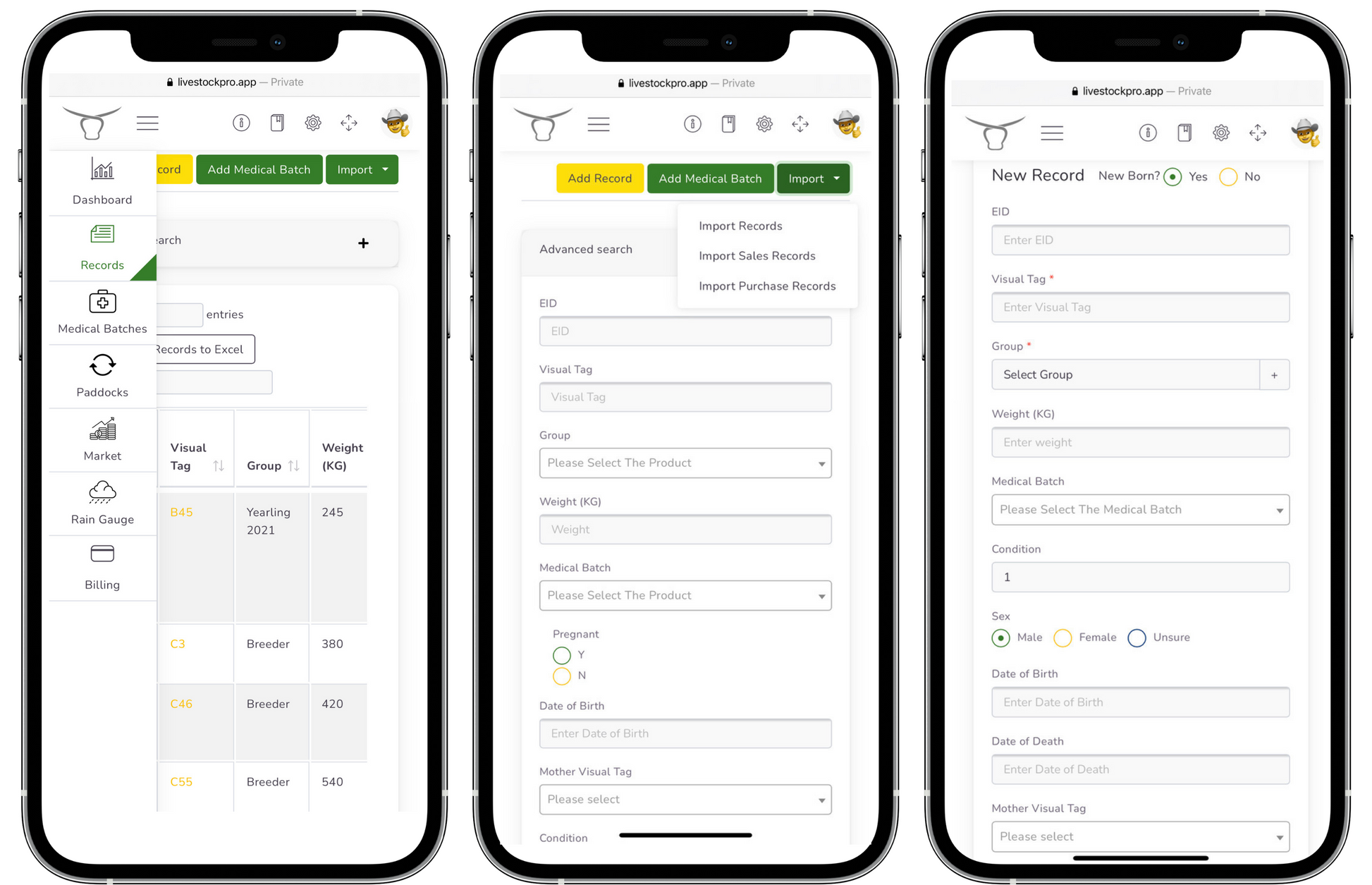

Our new mobile application can be used when internet access is not available - just sync to the cloud when internet access is next available and your records are automatically updated. (Demo below)
Our load bars are known for their rugged durability, superior accuracy and performance in harsh operating environments. The internal load cells are made from aircraft grade aluminium and are fully sealed to keep out moisture (IP67 rated).

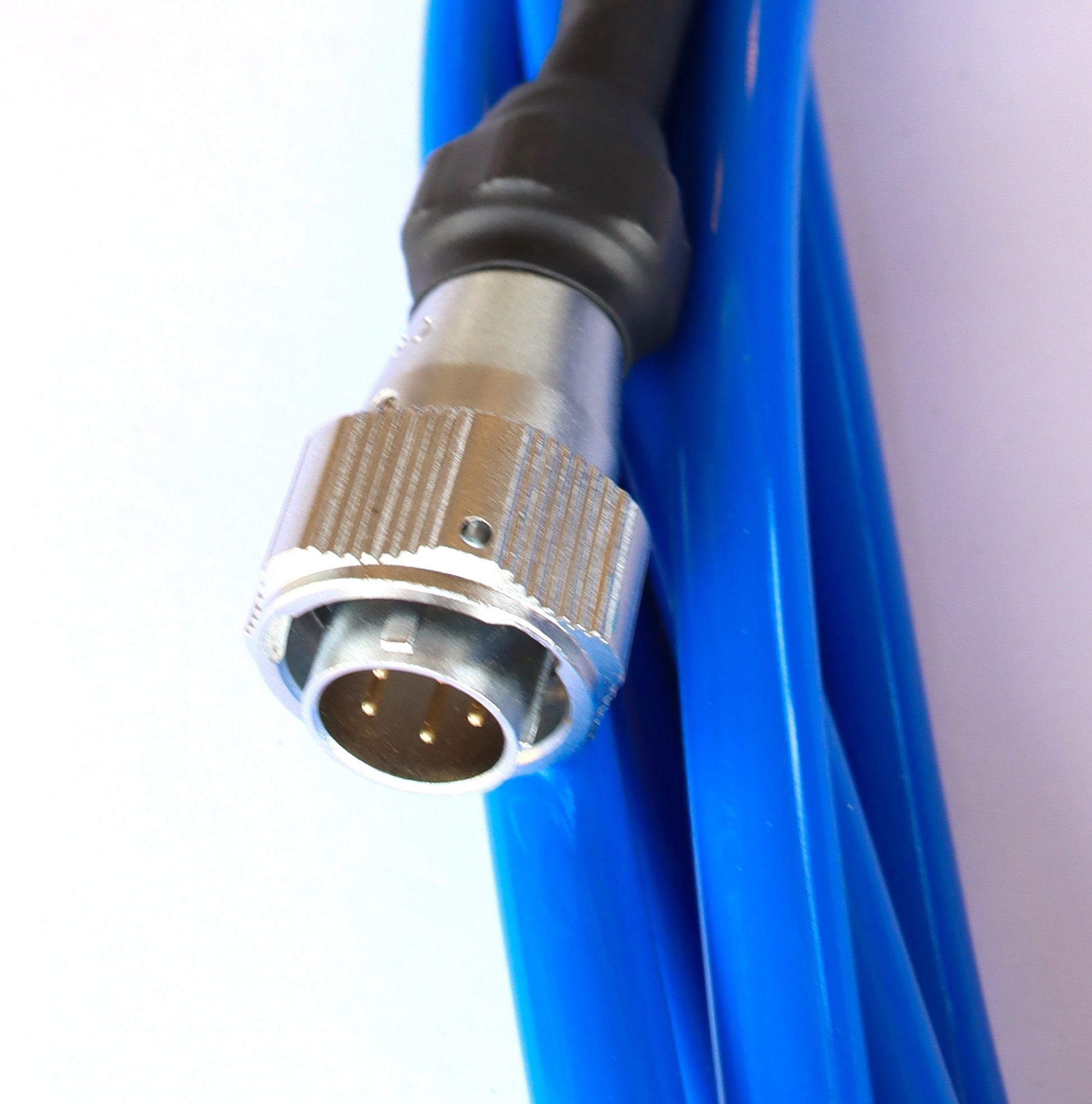

Cabling has been upgraded to a blue high density TPR / PVC rodent proof coating with stainless steel quick release connectors with independent heavy duty cabling to each individual load bar for optimal reliability and protection.

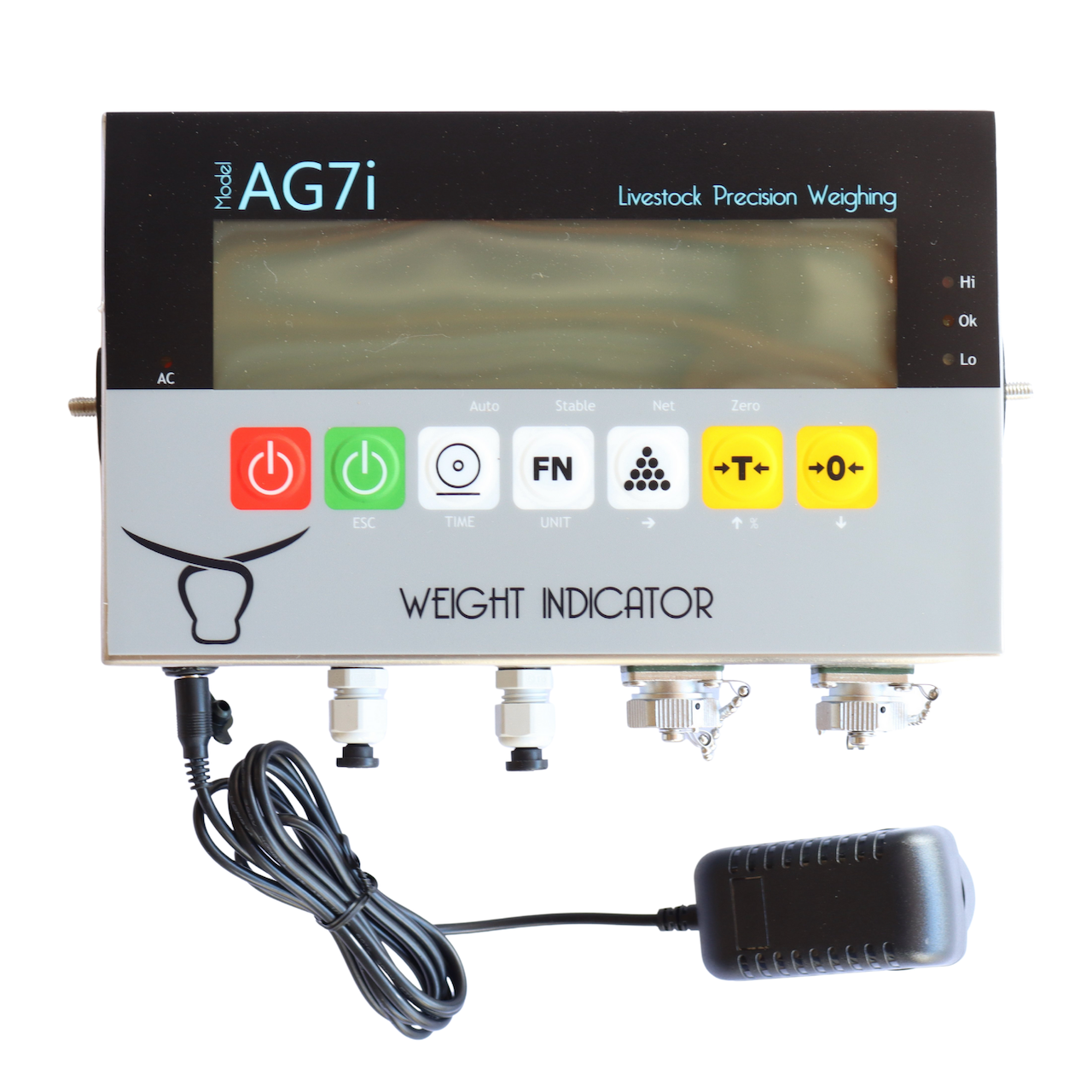

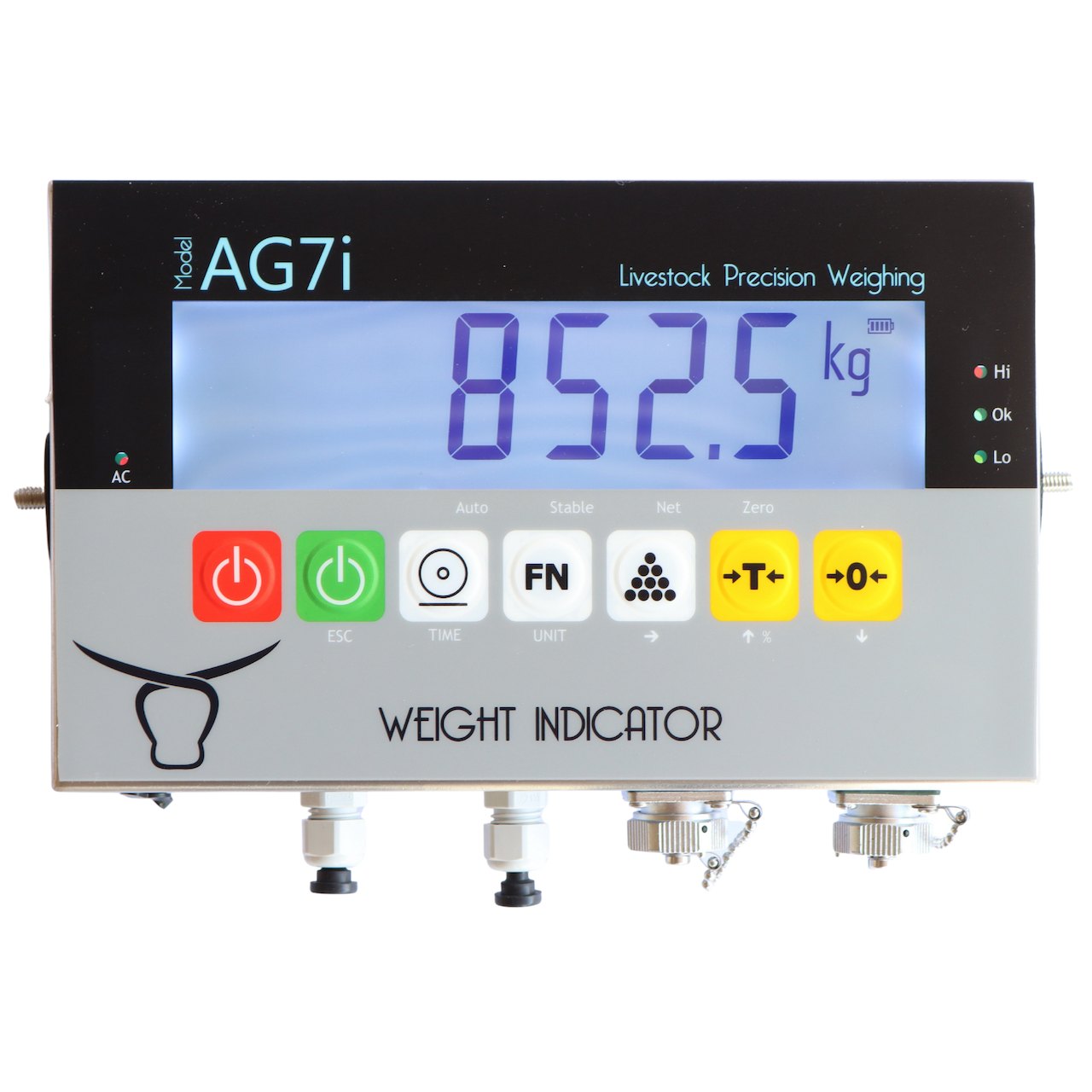

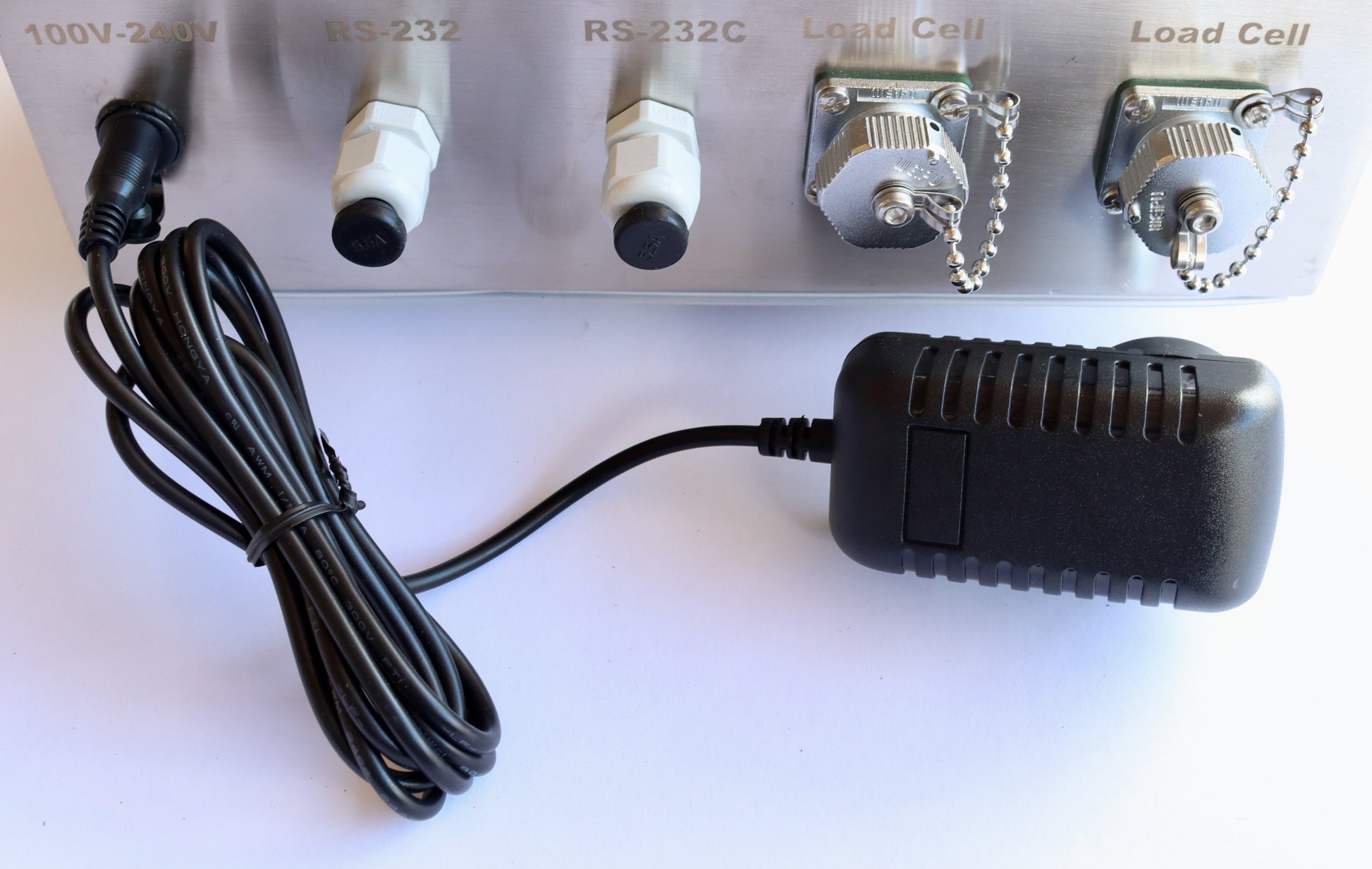

Each system includes a heavy duty stainless steel IP67 digital monitor with 2000 unit memory storage (save and retrieve individual weight records) and an advanced livestock hold mode at no additional cost. Also includes stainless steel mounting bracket and 6v heavy duty rechargeable battery good for thousands of readings (3-5 days continuous usage with out mains power).
The load bar system is calibrated in the factory with a 1000kg weight so you just have to connect the load bars to the monitor with the 2 provided cables and switch on the HD monitor to start precision livestock weighing.
Click here to view the technical manual with system functions and capabilities.

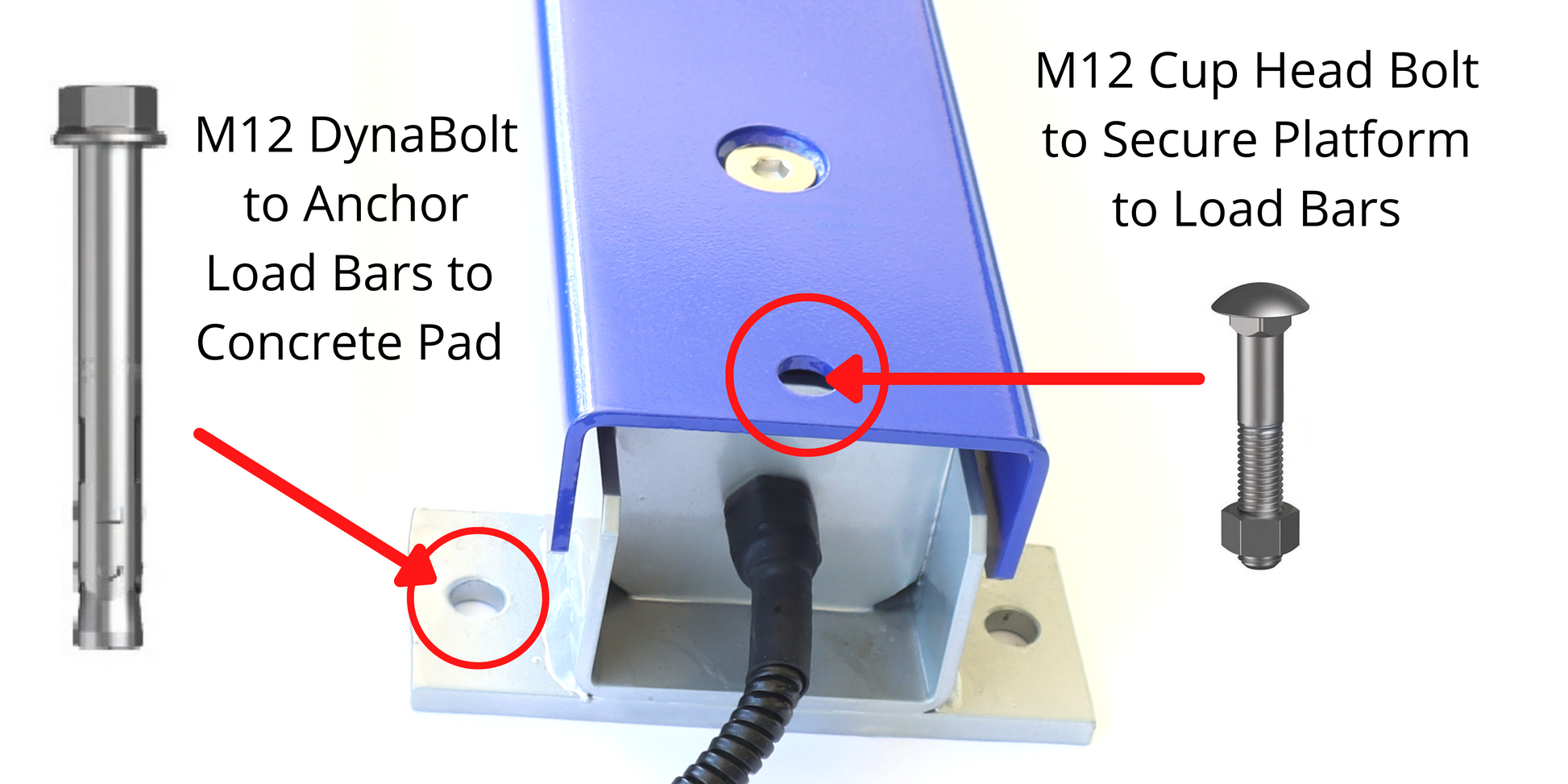

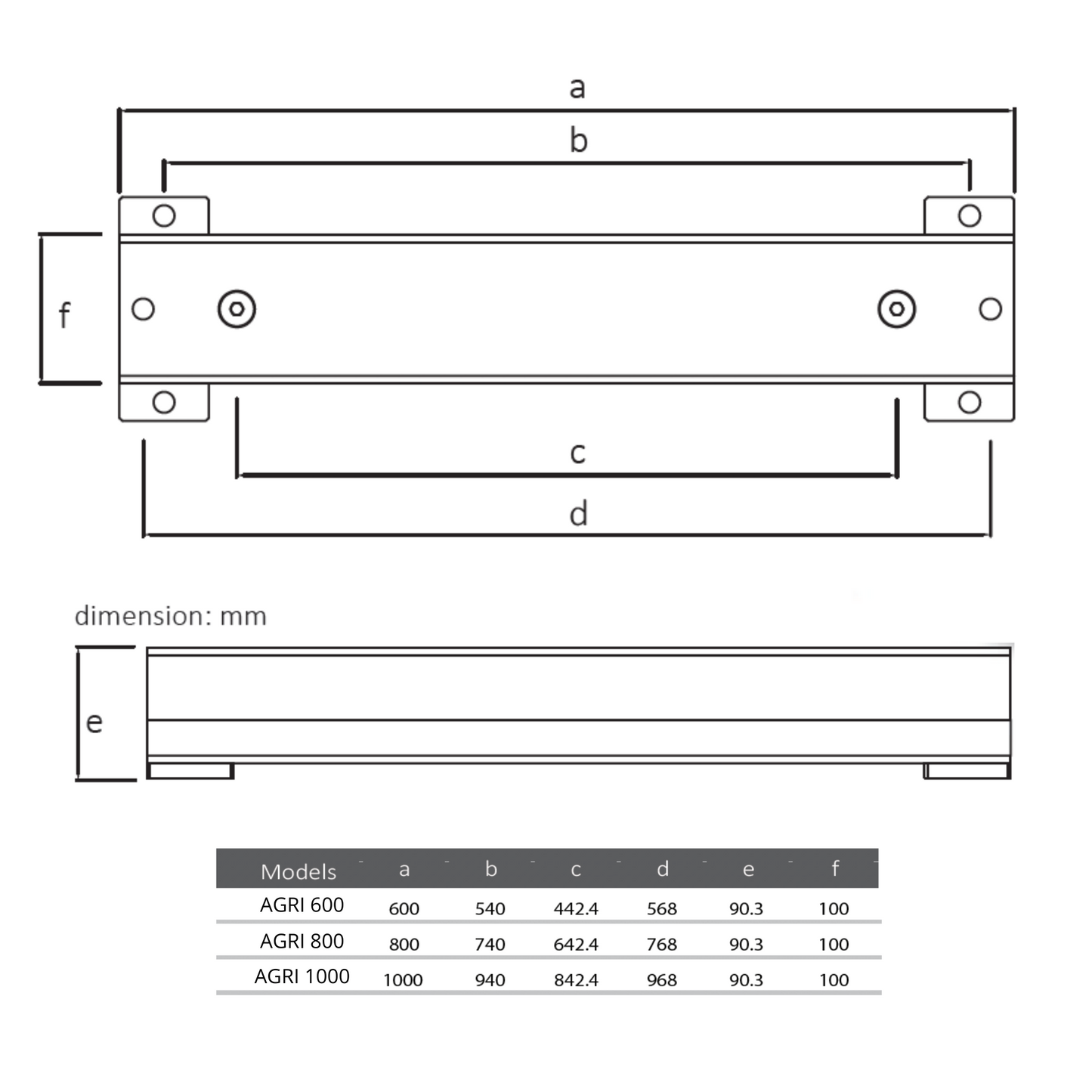

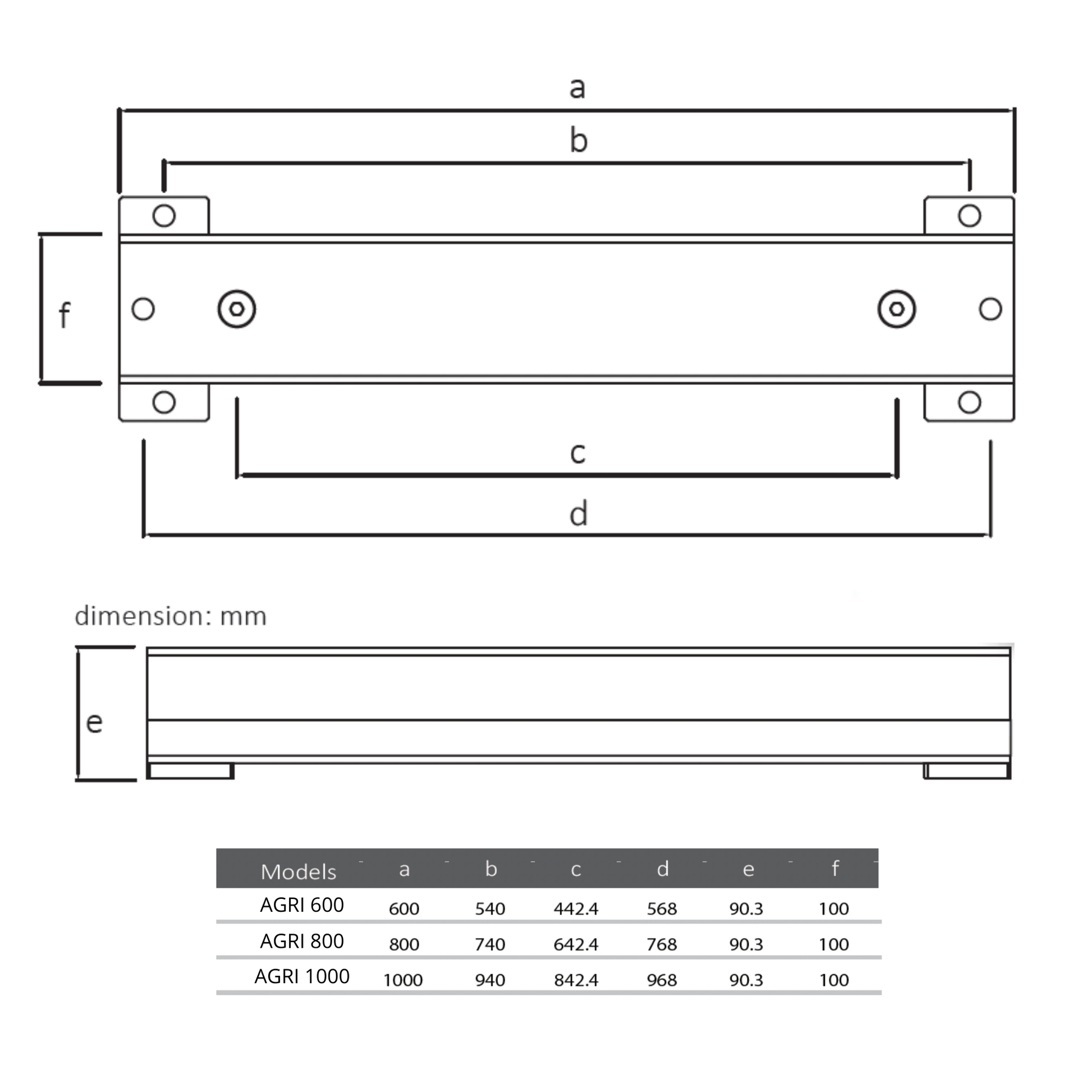

There are M12 sized holes on the edge of each bar so you can use an M12 cup bolt to secure your platform to the top of the load bars. There is clear and easy access to the bolt area to tighten as required before and after use of the system.
Check out our Free Guide on how to build a aluminium platform (click here). We recommend aluminium construction from a local engineering / welding / fabrication firm - cost should only be $500 to $800 and take a few days to build.
We do not sell platforms for 3 main reasons : Each crush is constructed differently with unique measurements and requires a custom built platform to properly fit with no installation issues. Freight costs for a large metal platform would be cost prohibitive. We also like to support local rural businesses and the community.
EACH LOAD BAR SYSTEM INCLUDES 6 MONTHS FREE AGRIEID SOFTWARE INC (ADG) WEIGHT TRACKING

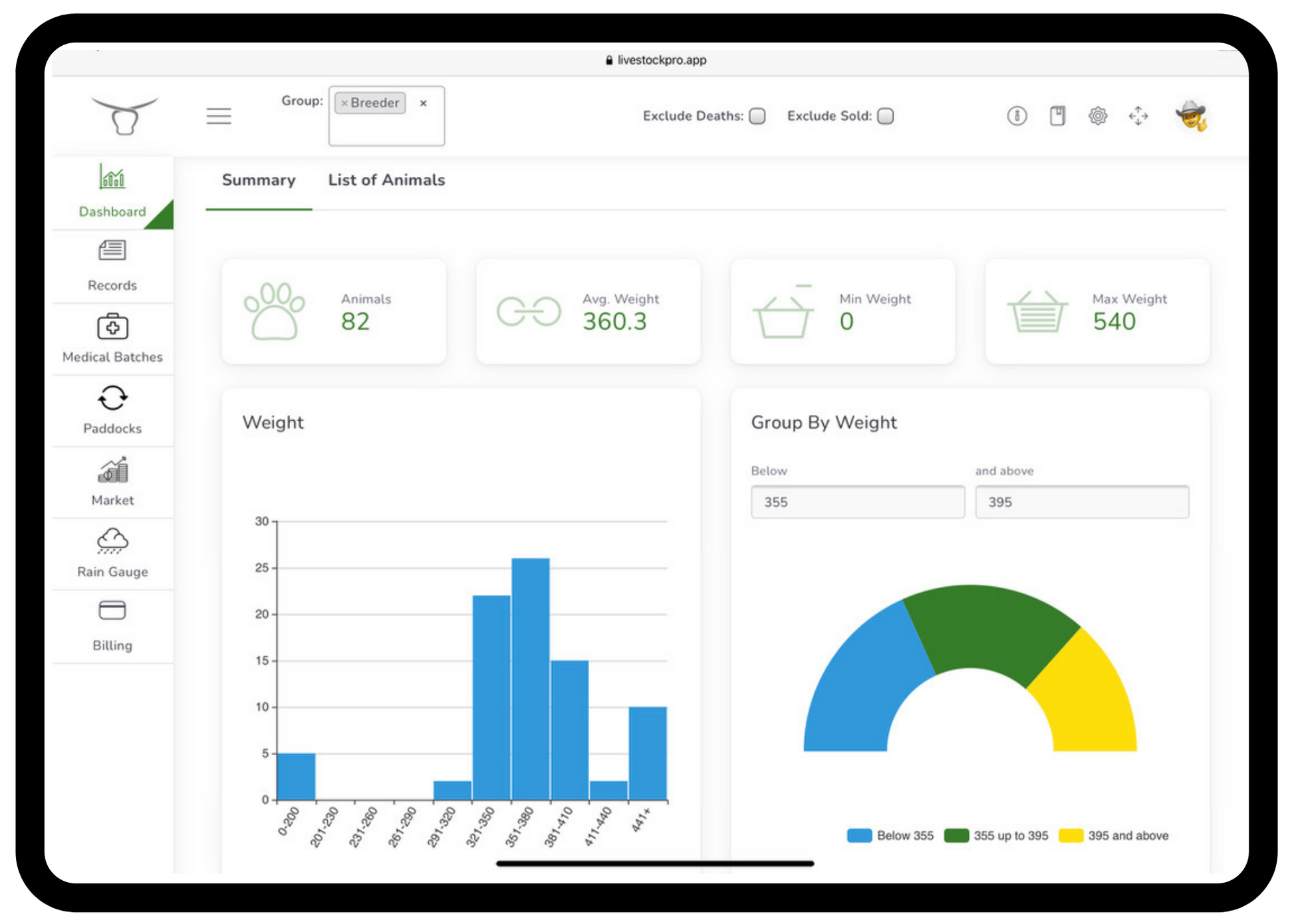

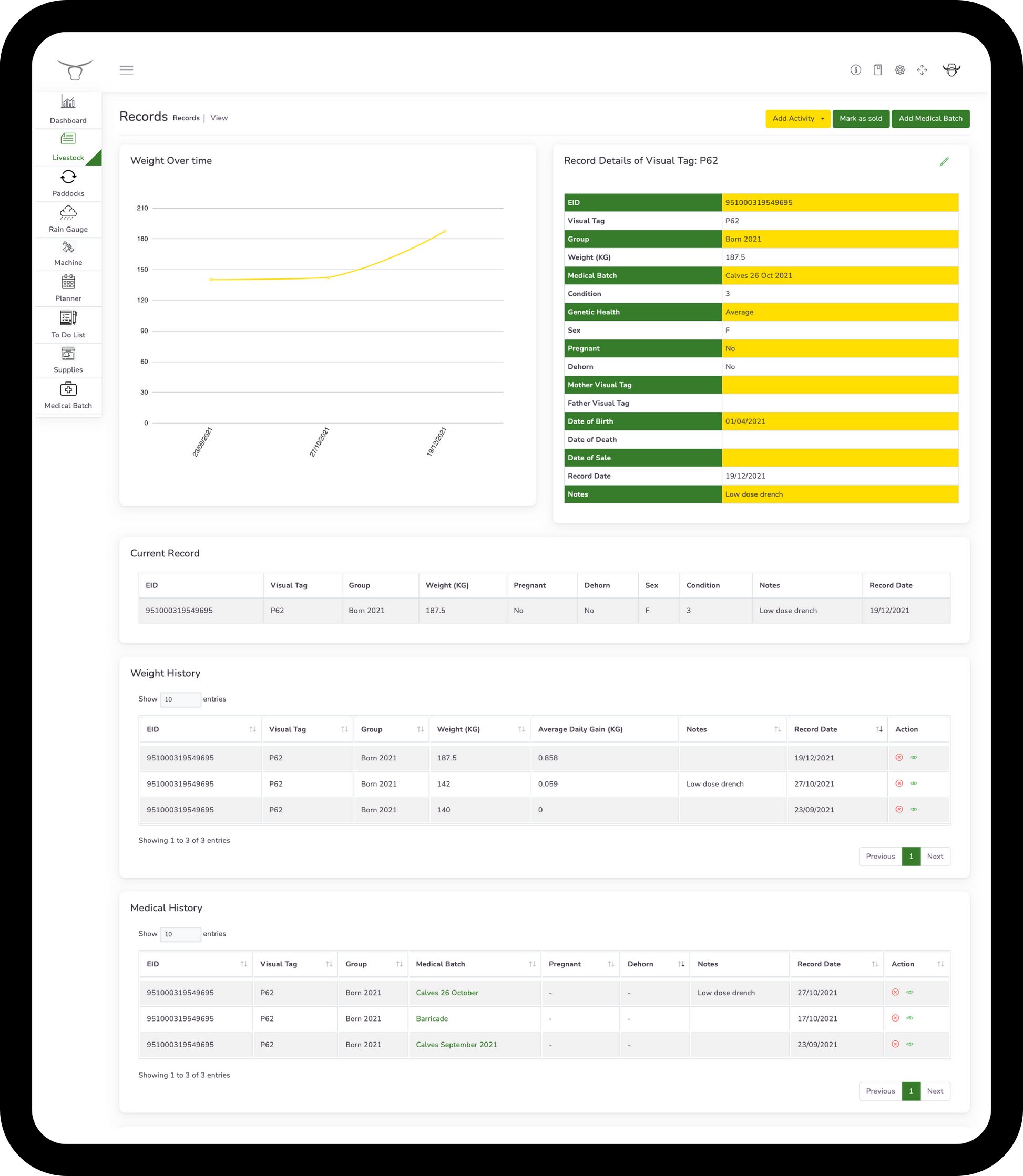

Demo of Livestock Module with ADG in the AgriEID Cloud Application
For more info on AgriEid software click here (inc pricing). You can export all records to excel if you do not want to continue using the software after the free 6 month period. Please note the AgriEid software is not required to operate the load bar system - it is simply a fantastic value added feature with powerful analytics developed to significantly increase your total weight production per annum.
Delivery time for this product is currently 5-7 Business days.
All sizes are currently in stock and ready for immediate dispatch.
PRICING includes GST and FREE SHIPPING Australia Wide
Live demo of the Digital Farm Software in action :
Digital Farm System in action with Heavy Duty NLIS SMART Stick Scanner
